Witek System Inc
|
|
|
WX-200
|
|
WX_200
MOBILE HANDHELD TERMINAL
|
- TCP/IP,SSL,HTTPS,SSH,Secure FTP
- Contact/Contactless Smart Card
- Integrated Scanner (CCD or Laser)
- 3.2” QVGA TFT LCD Touchscreen
- Fingerprint Reader Function
- SD Memory Card Interface
- Wireless LAN and Bluetooth
- GPRS/ GSM or CDMA Support
- Self-Diagnosis Function
- Various Language Font Support
- Long-life Battery
|
|
|
|
|

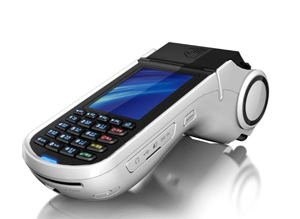

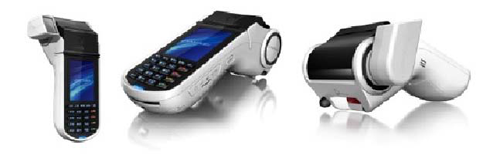

The WX-200 is totally newly designed and highly innovative EFTPOS(Card Authorization
Terminal) from WITEK. WX-200 has extensive interface facilities and refined ergonomic
design to pursue what the future card terminal concept should be. WX-200 has features
of multi operation systems like LINUX as well as Windows CE depending on user’s
preferences.
WX-200 performs PPP, SSL, HTTPS, SSH, and Secure FTP along with either GPRS/GSM or CDMA
communication package with various unique integrated devices; such as Smart Card Reader
in Contact type, Contactless type/RF card reader, integrated barcode scanner in two choices:
Laser type or CCD type.
WX-200 leads new card industry paradigm with more secure transaction environment by adapting
integrated Fingerprint Reader, which matches the data with Card holder’s Bio information.
WX-200 boast features from MSCR, Fast Thermal printer, serial ports, touch type LCD user interface,
SD memory card support, USB interface up to Wi-Fi connectivity.
|
|
|
|
Hardware ::
| Type: |
Mobile/ Desktop EFT POS Terminal |
Blue tooth: |
2,4GHz Class 1 or 2 for Data Communication |
| Unit name: |
WX-200 |
Audio: |
Speaker (mono), Headset Jack |
| CPU :: |
ARM 9 with MMU or More advanced CPU |
CDMA: |
800 or 1800 or 1900 MHz (Option) |
| O/S: |
Embedded Linux or Windows CE 5.0 |
Fingerprint Reader: |
Optical Type (Option) |
| Memory: |
SDRAM Memory 32MB (expandable to 128MB)
FLASH Memory 32MB ( expandable to 128MB)
Micro SD Memory Card Slot (Option)
SRAM 512KB(Expandable to 2MB/Option) |
GPRS/GSM: |
900/1800/1900 MHz Triple Band (Option)
850/900/1800/1900 MHz Quad Band (Option) |
| Printer: |
2” In Line Thermal Up to 20 Lines per second |
Port: |
Serial Port : RS-232C * 2, USB (Option) * 2 |
| MSCR: |
Track 1/2 or 2/3, ISO 7810/7811/7812 or
Triple Track 1/2/3 (Option) |
Protocols: |
TCP/IP, SSL, HTTPS, SCP |
| IC Card Reader
(Contact type/Option): |
IC Card Support 1 Full- size card, 4 SAM,
ISO 7816-1-2-3-4 EMV 2000 Approved |
Internal PIN Pad: |
PCI PED Compatible / Compliant (Option)
Integrated (Internal) PIN Pad for secure Transaction |
|
RF Card Reader (Option): |
ISO 14443 type A, B, Mifare
|
Security: |
Triple-DES algorithmMaster/Session keys(12), DUKPT. |
|
Display: |
QVGA(240*320), 3.2”TFT-LCD, Touch Screen/Sign Pad(Option)
|
Operating Temp:
W/LAN(Wi-Fi): |
0 ~ 45 C
IEEE 802.1b/g/n (Option) |
|
Keypad: |
21 Key, 3 x 4 alpha-numeric keypad and 9 function keys
|
Power: |
12V 1.5A DC Adapter // 2200mAh Li-Polymer
Rechargeable Battery(Option)//3300mAh Li-Polymer (Option)
|
|
Scanner: |
1D Laser Type (Option) //1D or 2D CCD Scanner (Option)
|
Buttons:
Weight: |
Power, Scanner, Screen Touch Lock On/Off
480
|
|
Dimensions: |
Main 95 (W) X 225.8(L) X 98.8(H) mmCradle
119.8(W) X 237.5(L) X 94.5(H) mmMain + Cradle :
119.8 (W) X 248(L) X 143(H) mm
|
Cradle: |
Recharging only Package, Dual Recharging Package, Wired Features Access Package(TEL, LAN, USB, Serial), Combined Package (All Packages are Option)
|
|
|
