fujitsu - 5120

Attractive price, outstanding performance and the smallest A3 footprint in the color departmental scanner market

•Fast, 25-ppm/50-ipm scanning in color, monochrome and grayscale .
•True, 600-dpi optical resolution with dual-CCD scanning array captures minute details
•First workgroup class scanners to offer ultrasonic double feed detection
•Robust 50-page Automatic Document Feeder (ADF) for hard and embossed card scanning (Example: credit or healthcare cards)
•Comes with Kofax VRS®, Adobe® Acrobat® Standard, ScandAll 21 and QuickScan™ utilities
•One-year Limited Warranty with available Advance Exchange program

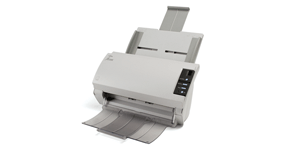

The Fujitsu fi-5120C makes the most of your scanning budget

The Fujitsu fi-5120C scanner offers outstanding price/performance value in a compact footprint making it well suited for the front-office environment. It scans in color, grayscale and monochrome at duplex speeds up to 50 ipm and features 600 dpi optical resolution for incredible image quality. The Fujitsu fi-5120C scanner is the only workgroup class unit that offers ultrasonic double feed detection and long document scanning support (up to 34 inches).
This scanner now features hard card scanning capability (ISO7810 standard) and embossed card scanning through the main automatic document feeder. Yet, at just 6.3 in. x 11.9 in. x 6.7 in., it easily installs into even the most crowded environments.

Features
Ultrasonic document double feed detection, Selectable B&W background, Page counter, De-skew & Auto-cropping, RGB Color Dropout, Long document scanning, Hard card scanning (2)

Model Informations

Functional Specifications

•Technology:

Dual Color Charge Coupled Device (CCD) image sensor

•Resolution:

50 - 600 dpi

•Halftone patterns:

Dither & Error Diffusion

•Grayscale:

10 bit/1024 level (internal), 8 bit/256 level (output)

•Color:

24-bit single pass color

Scanning speeds

•Output:

•Monochrome & Color @ 200dpi :

25ppm in simplex 50ipm in Duplex

•Color @ 150dpi:

30ppm 60ipm

•Scanning mode:

Simplex and Duplex

•Document feeding mode:

Automatic document feeder (ADF)

•ADF capacity:

50 Sheets (letter/A4, 20 lb.)

•Document size:ADF minimum
ADF maximum

(A8) (2.1 in. x 2.9 in.)
(Legal) (8.5 in x 14 in)

•Interface:

Ultra SCSI (50m) / High-speed USB 2.0

•JPEG Compression:

Hardware; choose from 7 different levels

•Software Driver Support :

ISIS® and TWAIN driver included (Win 98/2000/NT/XP)

Physical Specifications

•Power requirements (auto-switching) :

100-240 VAC, 50/60 Hz

•Power consumption :

28-34 W, Energy saving mode: 6 W or less

•Operating environment : [Temprature]
[Relative humidity]

42° to 95°F (5° to 35°C)
20%-80% (non-condensing)

•Dimensions (HxWxD):

6.2 in. x 11.9 in. x 6.6 in.

•Weight :

8.4 lbs.

•Limited Warranty :

One-year. Advance Exchange program also available;restrictions apply..

•Service Options :

Post-Warranty - Advance Exchange Plus; restrictions apply.

Reliability

•Daily duty cycle:

Up to 1000 pages
