sekonic SR-1800

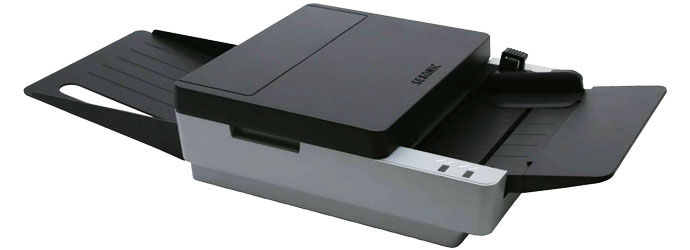

    The Economical Sekonic SR1800 OMR Scanner

    Sekonic has once again introduced one of the most versatile OMR or Optical Mark Recognition scanners in the market today. Sekonic SR1800 is an economical auto feed OMR that has accurate data capturing feature that can scan forms with 2.5 inches up to 9 inches width.

The SR-1800 is one of the most versatile Optical Mark Read (OMR) scanners on the market. Designed to accommodate small to mid-size projects, it is compact, user-friendly, and most importantly, affordable. By combining the SR-1800 with Remark's OMR Classic software, you now have a comprehensive tool that will make the task of collecting data a breeze. Let the SR-1800 be your new best friend when scanning tests, assessments, surveys, and/or evaluations.

  • Own a Sekonic 1800 that is specifically designed for economically scanning large-scale assessments.
  • Auto-feed test scanner that processes more than 1800 pages per hour.
  • Available in both single and dual side read head.
  • PC-compatible for advanced data collection and analysis.
  • Get immediate results, reports and exports from Remark's OMR Classic software.

    • sekoni SR-1800

    Technical Specifications
    Dimensions: 12.9" x 5" x 28.7"
    Weight: 10.8lbs.
    Power Supply: Voltage: AC 100V 50/60Hz to 240V 50/60HZ
    AC Adaptor: Input 24V 2.1A
    Read Head: Simplex (single side read) or Optional Duplex (dual side
    read), Mark Implements: Pencil or Optional Pencil + Pen
    Scan Area: 48-channels, 1/16" spacing
    Speed: 1800 forms per hour
    Document Transport: Auto-feed with 100 sheet feed tray
    Controls: Operation Button: 2 (Start/Clear), Display: LEDs (Ready and Error)
    Document Sizes: 2.5" x 4.3" min. 9" x 14" max.

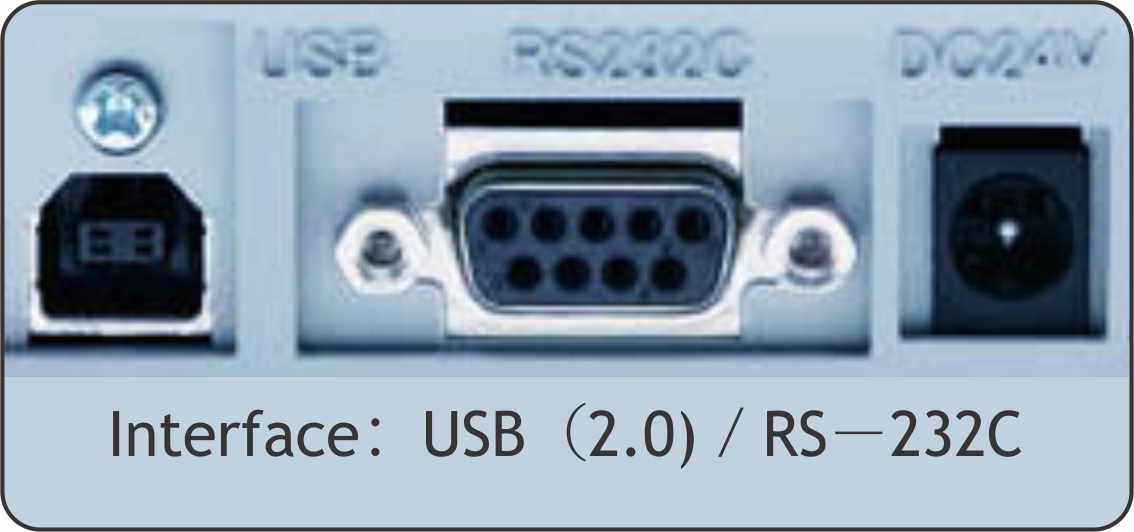

    I/O Communications: USB (2.0) or RS-232C
    Communication Speed: 9,600 to 115,200 bps
    Utility Software (optional): MarkView
    Accessories: CD-ROM (User manual, USB Driver, API, Diagnostic Utility Software) Power Cable (AC Adaptor), USB Cable
    Accurate Data Capturing
  • Detection Mark Density：to capture the data correctly. （256 degrees - 16 steps of Discrimination）This function provide automatic detection to select the most darkest marking in each fields.
  • SR-1800 has function to eliminate Double feed, and No feed detection to capture data correctly.
    • USB Connection is provided as well as Serial Port

    For DESKTOP NOTE LAP TOP PALM PC!!


    DESKTOP OMR (Light Weight, Compact Footprint)
    Only 4.9Kgs（10.8lbs）of weight, and 328 x 128 x 390㎜ （12.9 x 5.0 x 15.4 Inch）of footprint provides flexibility and portability in spite of feed A4, letter, legal size form.
    Approved and Compliant with Current Worldwide Environmental Regulations
    Approved : UL / VCCI / BSMI / FCC / MIC Compliant : CE / RoHS

    DOWNLOAD BROUCHER

    DOWNLOAD OPERATING MANUAL

    Content 2

    Videos

    More Scanners

    SR-1800 Application

    Education: Classroom Testing, Scoring, Analyzing Student Performance, Educational Administration, Student Surveys, Course and Instructor Evaluations Attendance Tracking.

    Medical: Health Risk Analysis, Patient Billing, Wellness Tracking, Clinical Evaluations Electronic Medical Records. Business: Customer Satisfaction Surveys, Personnel Evaluation Employee Satisfaction Study, Quality Control Feedback, Elections



    SR-1800 Optical Mark Reader

    By combining the SR-1800 with Remark's OMR Classic software, you now have a comprehensive tool that will make the task of collecting data a breeze. Let the SR-1800 be your new best friend when scanning tests, assessments, surveys, and evaluations.
